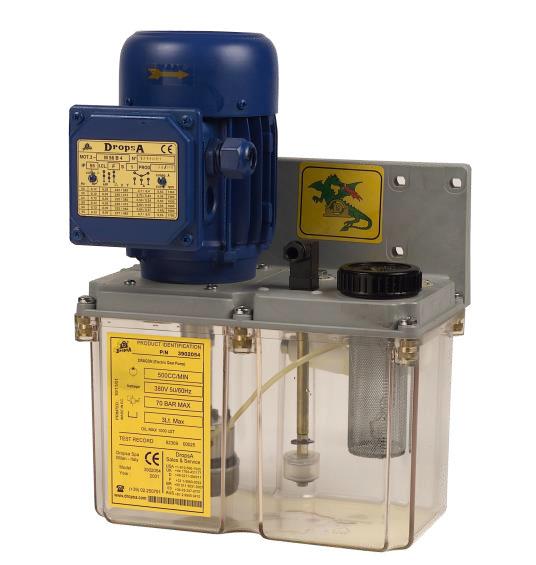

The Dragon pump series is specifically indicated, due to its compactness and versality, for lubrication systems for presses, machine tools, reducers, guides, chains, etc.
Dragon is a gear motor pump, available in TWO VERSION: the first with a flow rate of 350 cm³/min, the second with a flow rate of 500 cm³/min, values considered at 1.500 rpm.
This type of pump is tailored to customers’ most diverse needs, thanks to a wide range of electric motors and reservoirs available.
Reservoir capacity: 3 litres in anti-oil transparent plastic
l Compatible lubricants Mineral oils 15 - 1000 cSt
Liquid grease NLGI 000
Storage Temperature -20 +65 °C
Power voltages 220 ÷ 440 V CA 50/60 Hz three-phase
Absorption 90 W
Output signals Minimum level contact max 220 V 3A NA / NC
Operating temperature + 5 ºC ÷ + 60 ºC
Operating humidity 90% maximum relative humidity
Electrical protection IP 55
